Vogue Secure Integrated Profile
Our Vogue secure windows are fully versatile and totally integrated with a 70mm kerb appeal. The featuresare sculptured ovolo shape with clean and slim sightlines. It has the added advantage of full compatibility with a System10 70mm chamfered edged suite of profiles. Therefore, you can mix and match between the two with a choice of options. Furthermore, this leads to a quick, secure and easy to install procedure.
Vogue Secure offers a comprehensive range of window and door styles for the trade, retail, commercial or the new build fabricator, and installer to offer consumers and clients.
[/hcolumns]
[hr]
[hcolumns]
Profile
Profile measures 70mm / 62mm front to back, to ensure a direct replacement with timber windows with minimal trimming or finishing.
Choice of bead and glazing options
Designed to accept 24mm, 28mm, 32mm, 36mm & 40mm sealed units. Our profiles can be fitted with a choice of beads with chamfered or ovolo shape designs.
[/hcolumns]
[hr]
[hcolumns]
Thermal efficiency
The windows are designed to achieve a WER A rating with a double glazed unit and a standard outer frame. Patented thermal inserts are available to achieve a WER A rating with a double glazed unit using large outer frames. The system will also achieve up to Code for Sustainable Homes level 6 using the patented thermal insert.
[hr]
Product applications

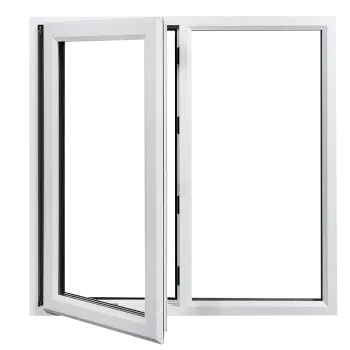

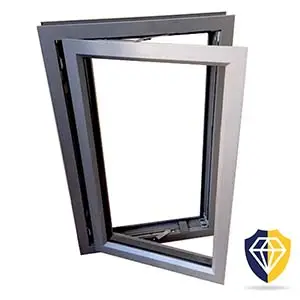

The Vogue Secure range allows for the manufacture of casement windows, french and tilt and turn windows, residential doors, inline patio doors and bifold doors. Vogue Secure also offers a range of slim sashes for increased glazing and less frame.
[hr]
Material specification
All Vogue Secure profiles are manufactured with acrylic high impact modified, Polyvinyl Chloride unplasticised compound (PVC-U).
[hr]
[/hcolumns]
[hr]
1 | Chambers
Five fully enclosed chambers with an increased wall thickness offer additional product strength, rigidity and performance in addition to improved thermal efficiency.
[hr]
2 | Reinforcement chamber
The additional chamber enables galvanised steel reinforcement to be used for greater strength and rigidity. (image shows steel reinforcement) Our unique design for the reinforcement ensures optimum strength and rigidity without compromising thermal efficiency.
[hr]

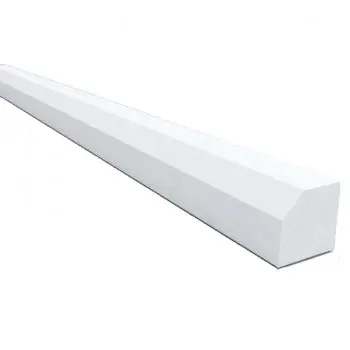

3 | Single leg bead for quick and easy glazing
As a result, our single leg beading has a simple ‘knock-in’ design that is fitter friendly and will make glazing on site quick, easy and more positive. The single leg bead has been tested to BS7950 Security enhancement standards.
[hr]
4 | PCE gasket
Our PCE low-level gasket allows quicker fabrication and installation. The heat bonded gasket means that there is no shrinkage or any risk of the incorrect gasket being fitted. It gives a consistency in quality and finish, overcomes any stretching problems and maximises compression. In addition, the special design for the gasket, channel reduces the risk of hard lumps in corners and allows for the replacement of gaskets in the cause of any damage. It features a new weather seal flipper and a glazing pad for an improved seal.
[hr]
5 | Low-level gasket
PCE gaskets are low level, which means they are designed to fit in with the profile so that the maximum glass area is made visible with no unsightly gasket lines.
[hr]
6 | Drainage
A wider drainage channel allows for a quick draining of any water/residue built up for an improved performance.
[hr]
7 | Top hat fixings and screw ports

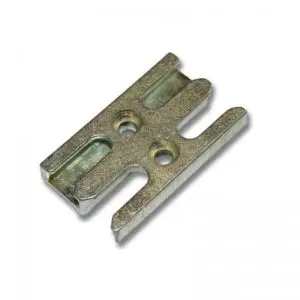

Hardware and striker keeps are screwed into top hat fixing points and screw ports for an improved technical and enhanced security performance.
[hr]
8 | 10mm overlap
A 10mm overlap as standard gives an increased weather performance.
[hr]
Furthermore, product listing includes uPVC windows which we also offer a variety of window frames in a wide range of colours, as well as wood grain effect.
